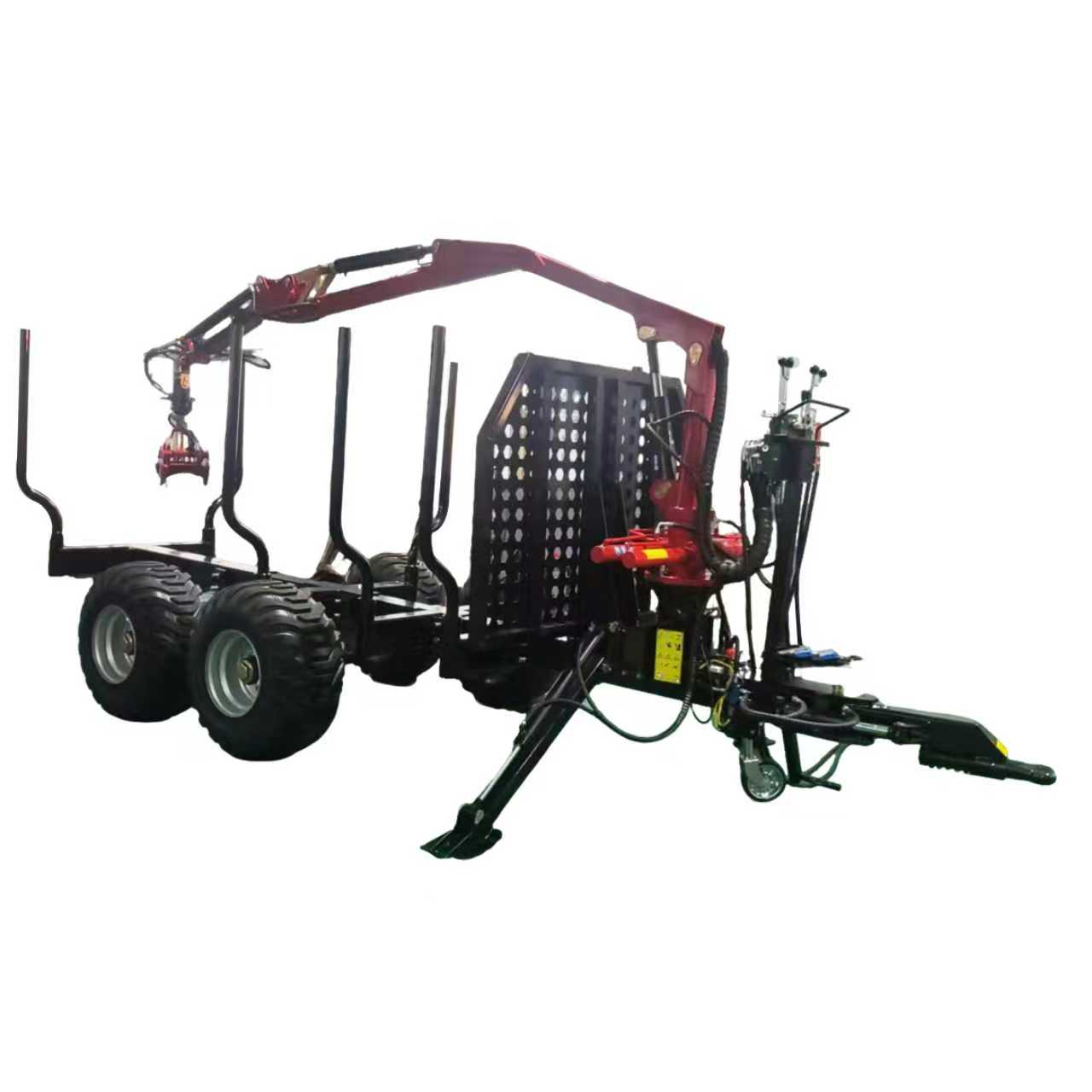

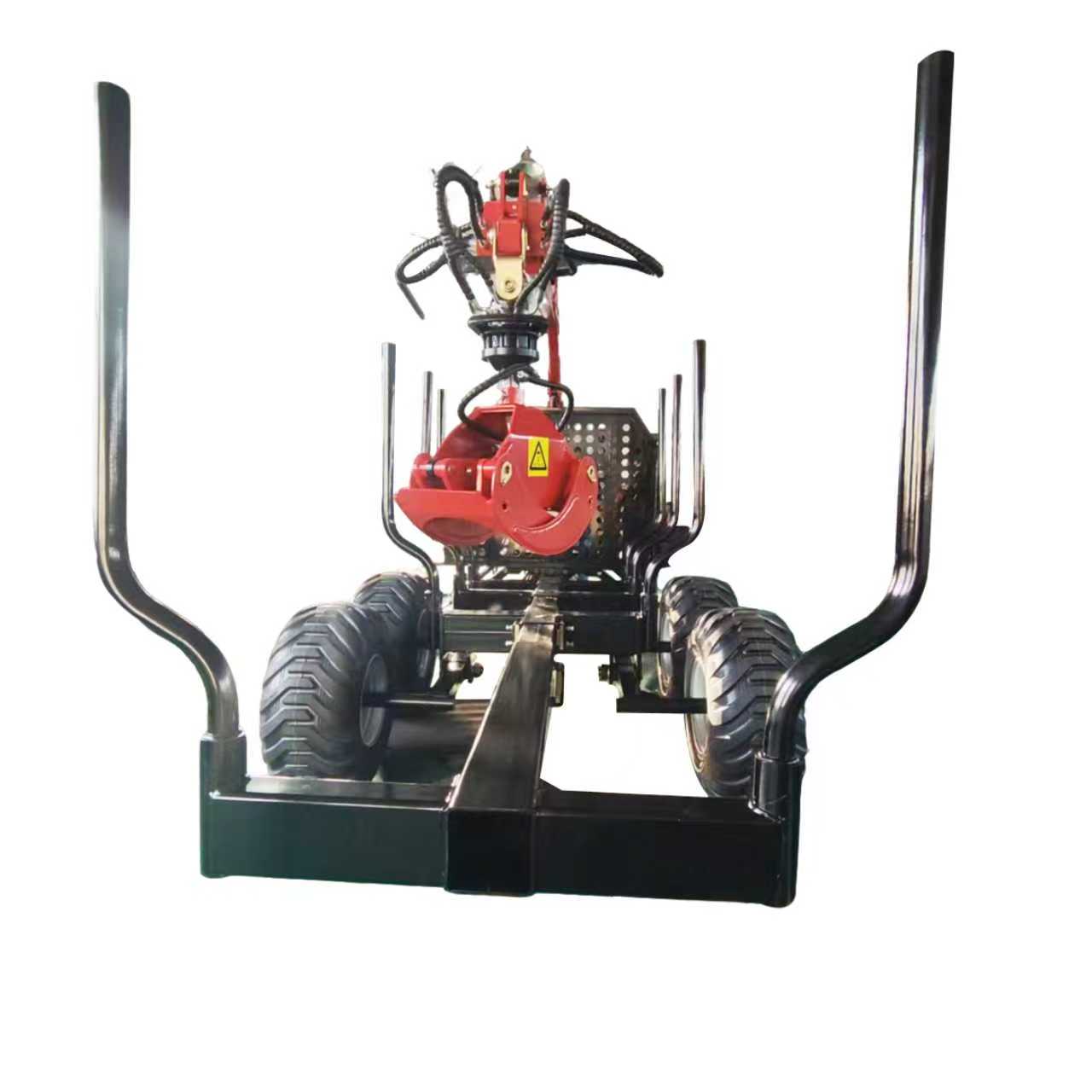

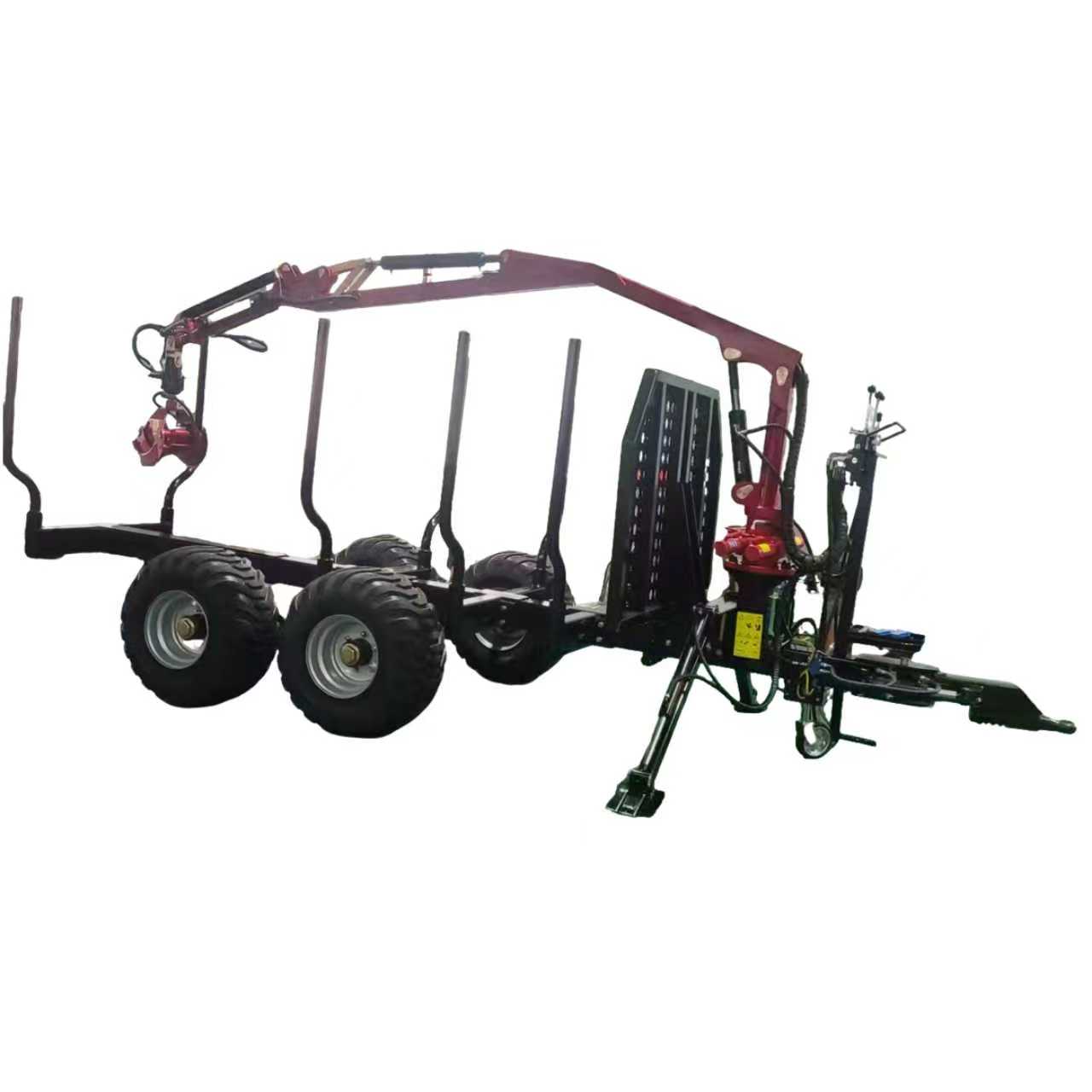

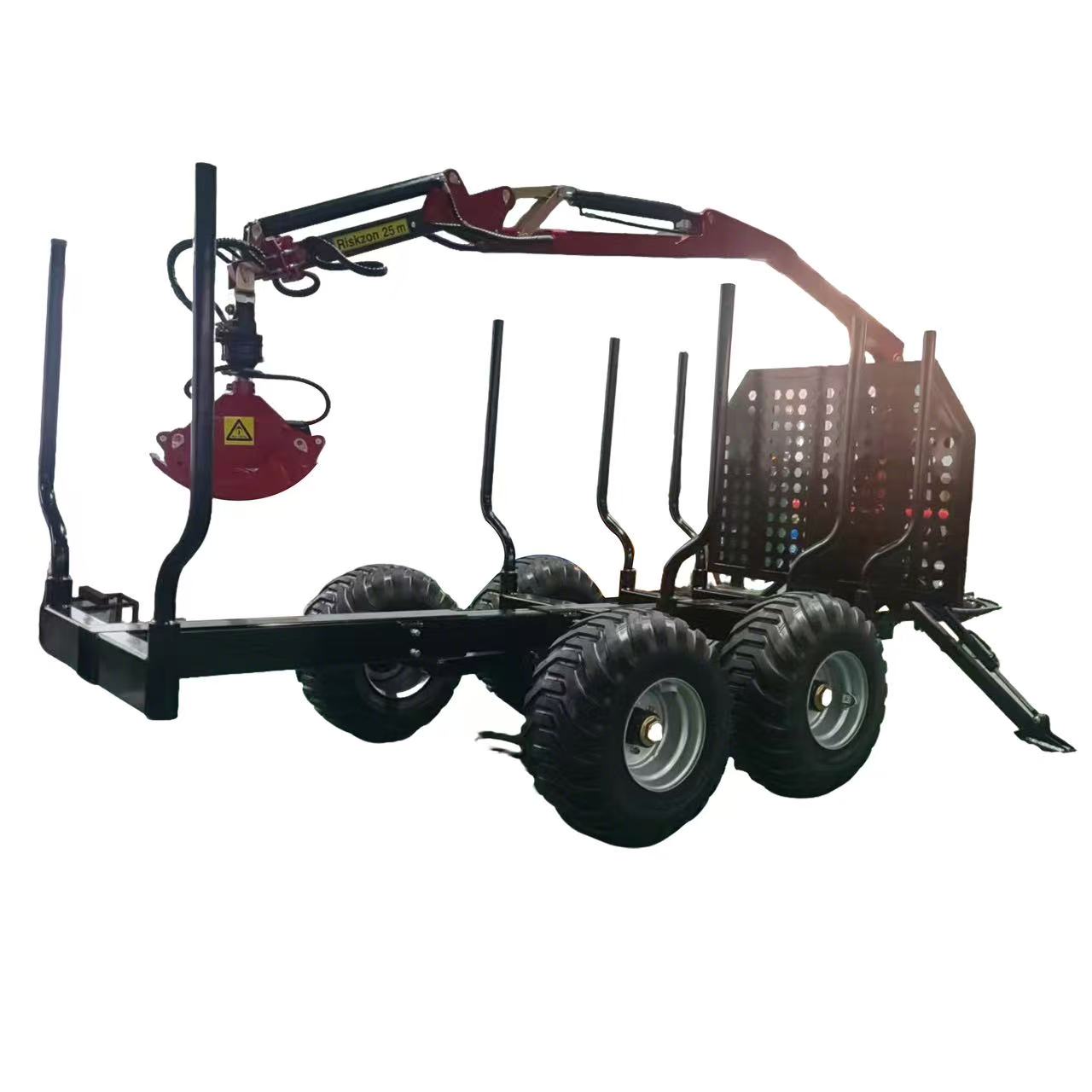

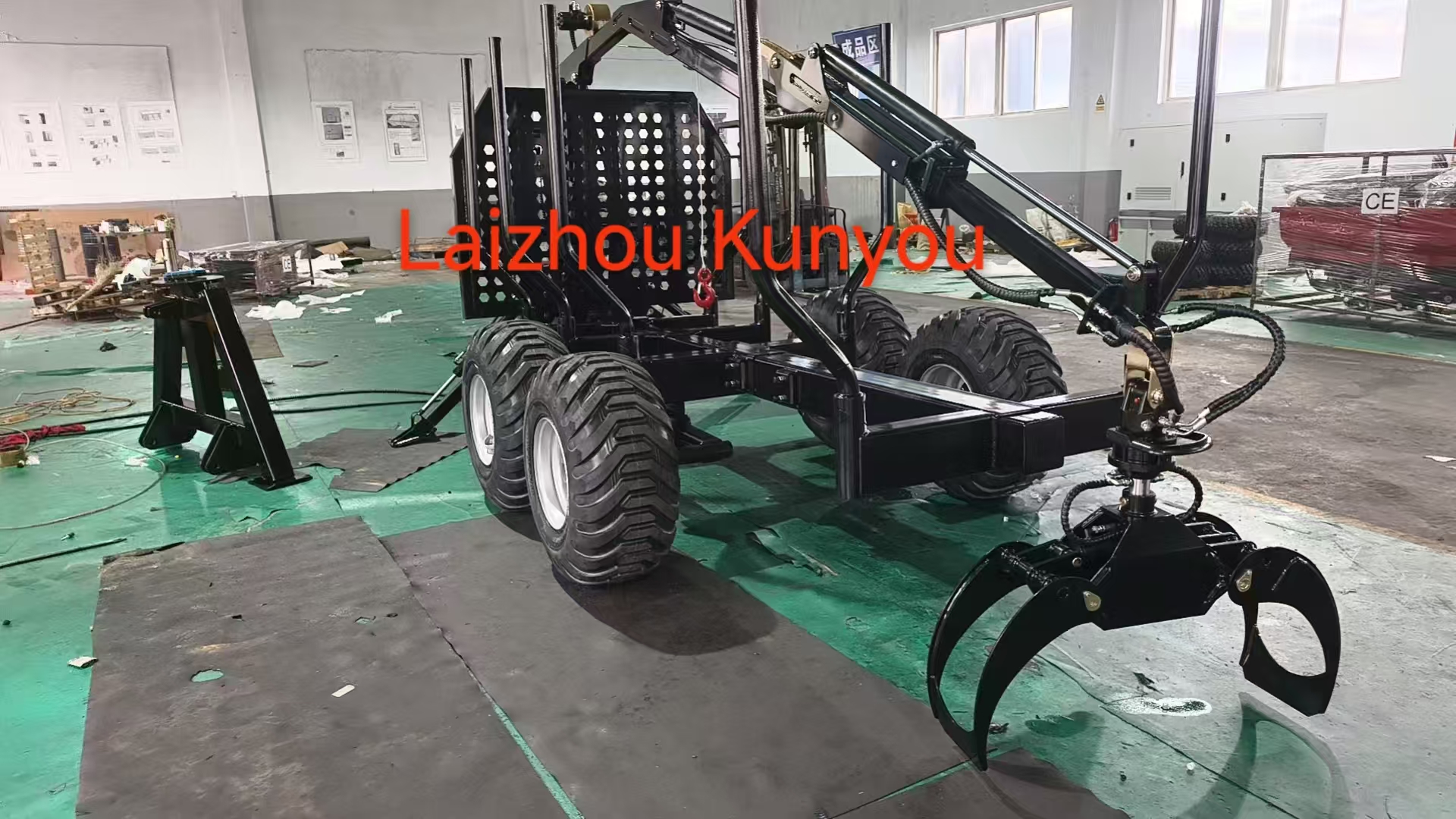

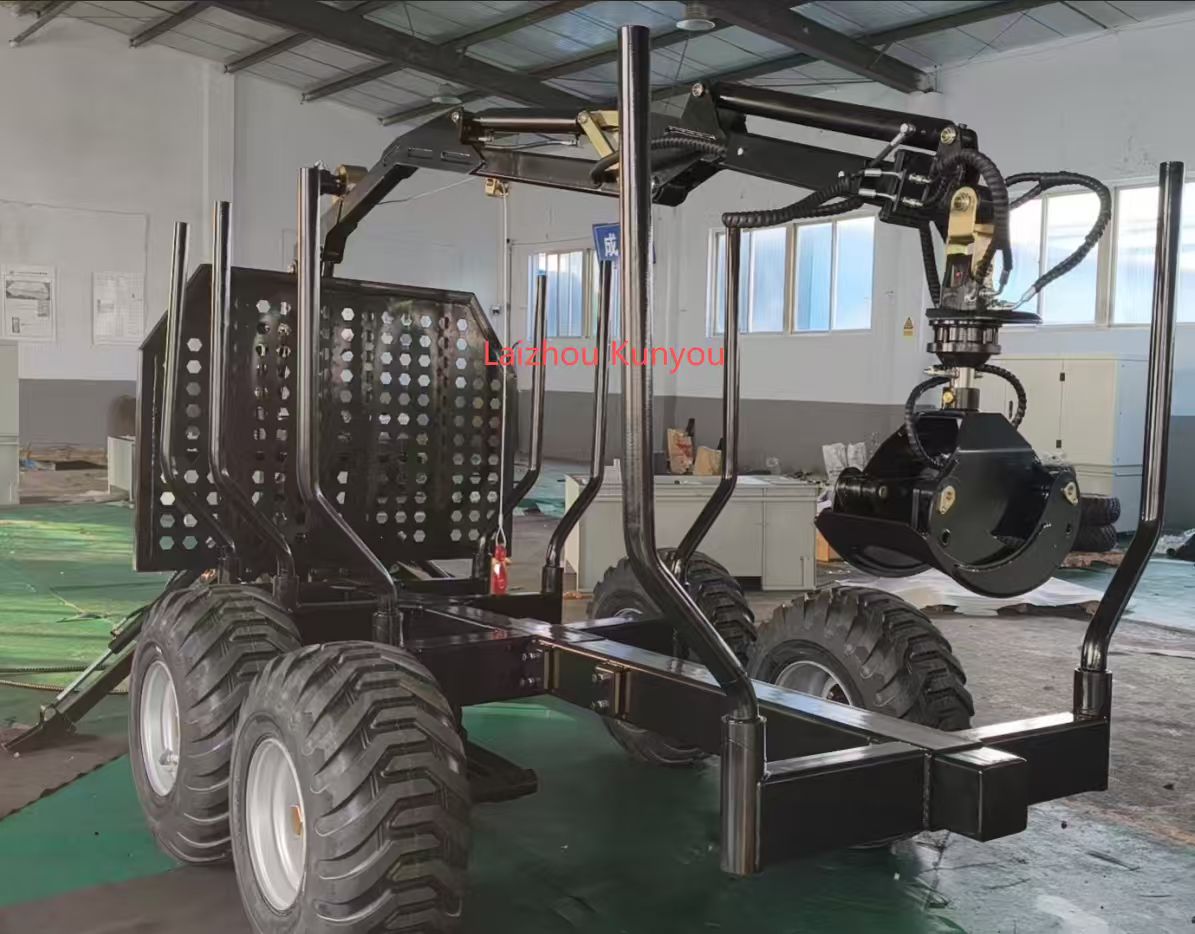

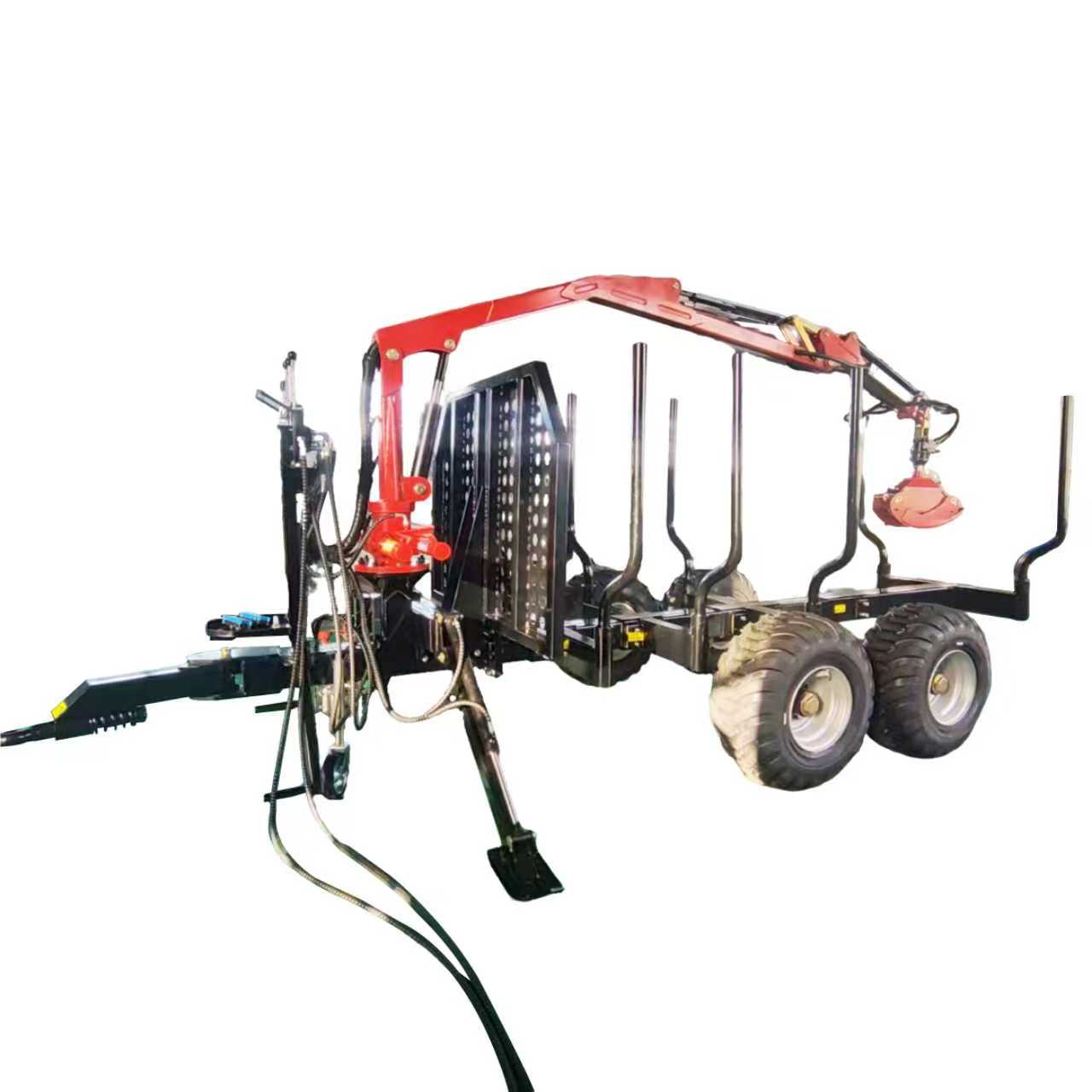

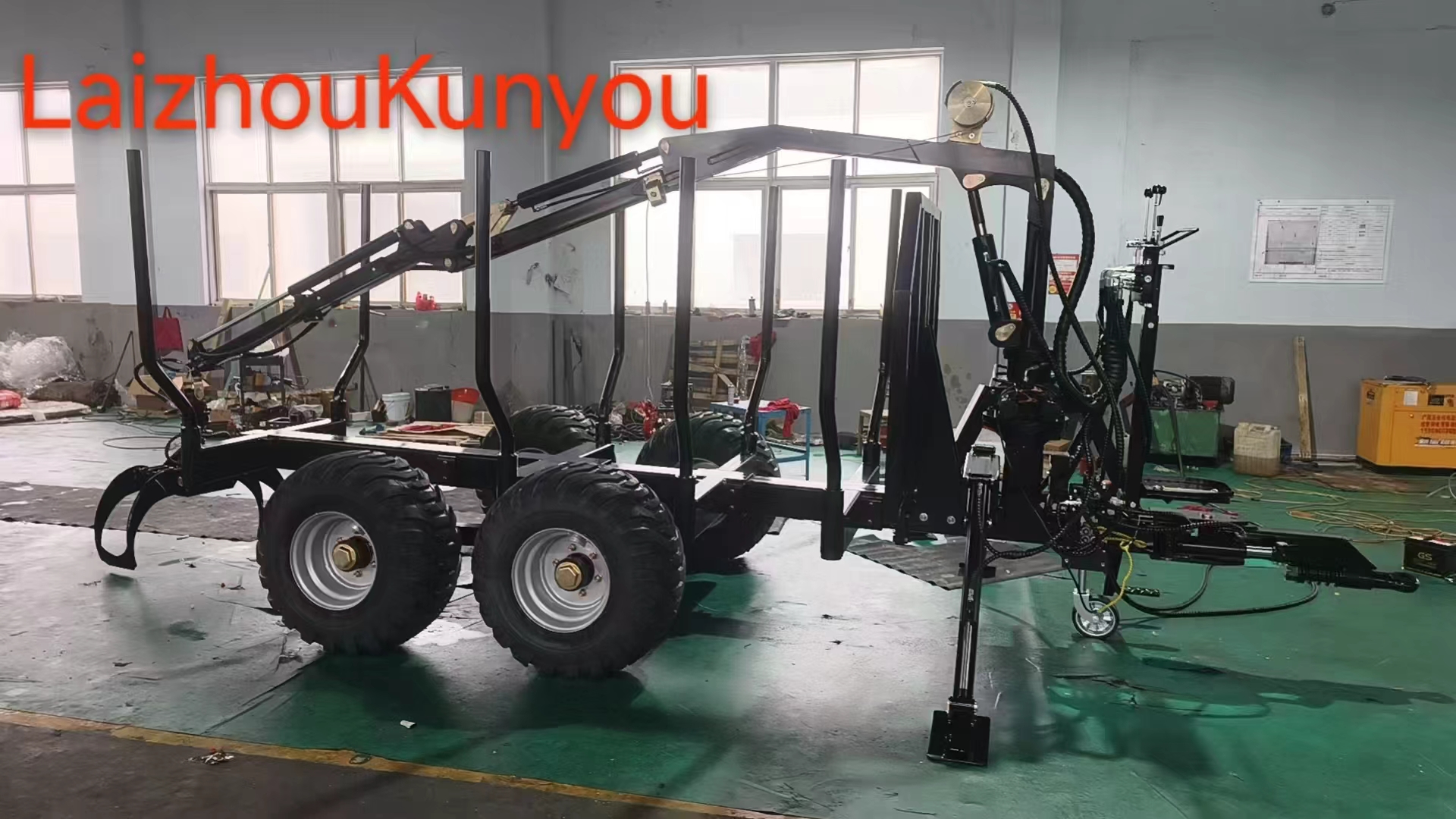

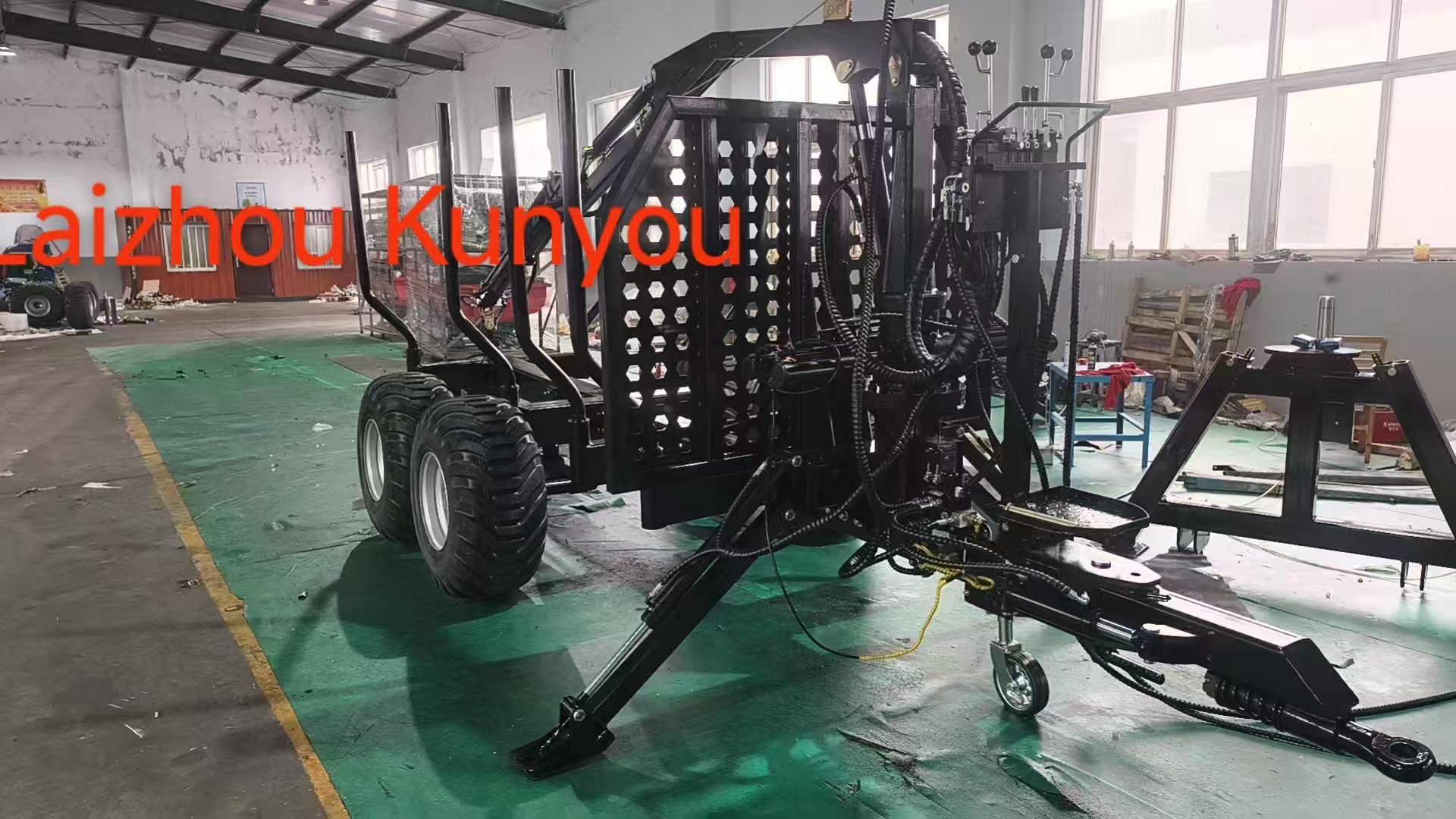

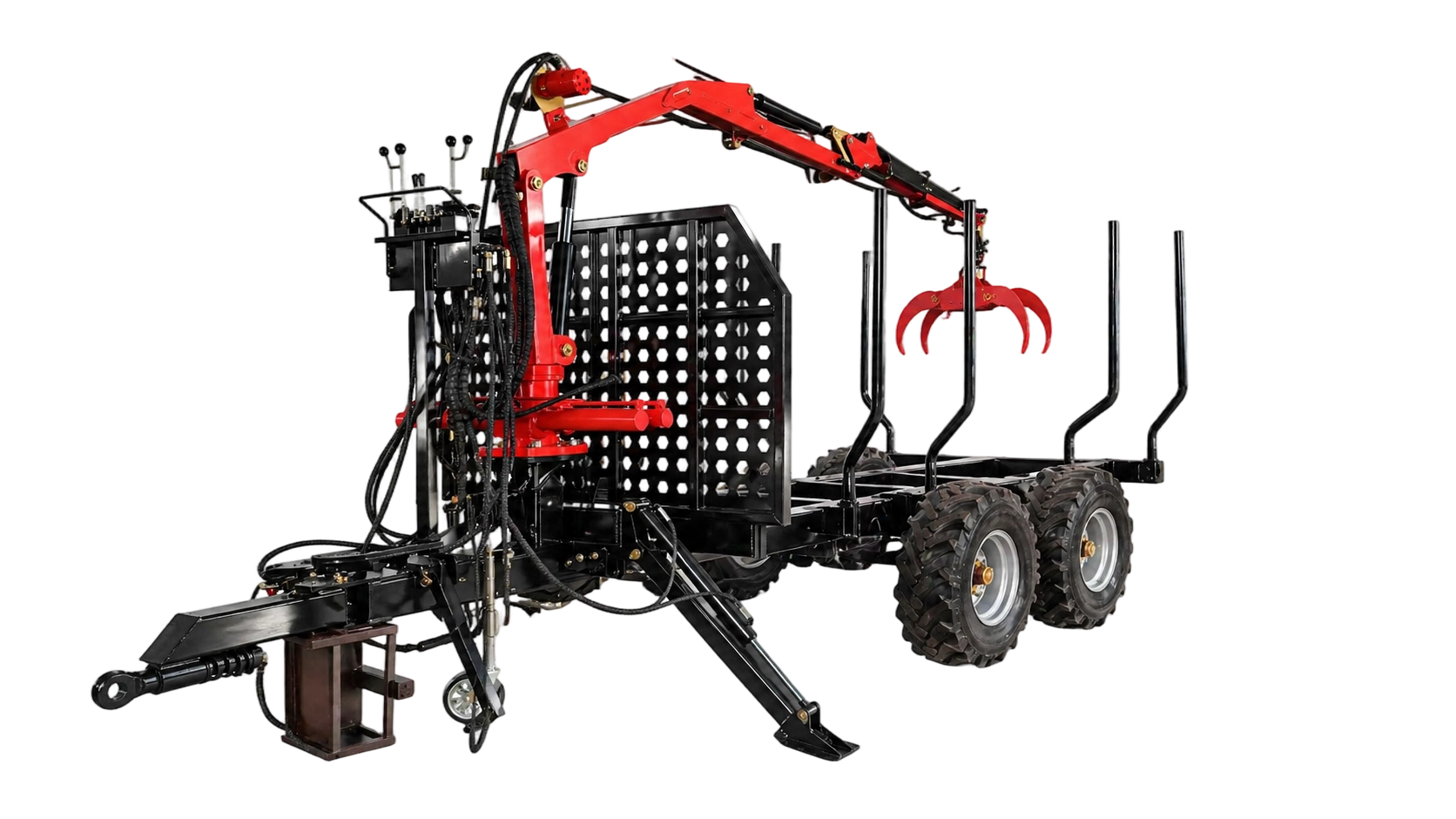

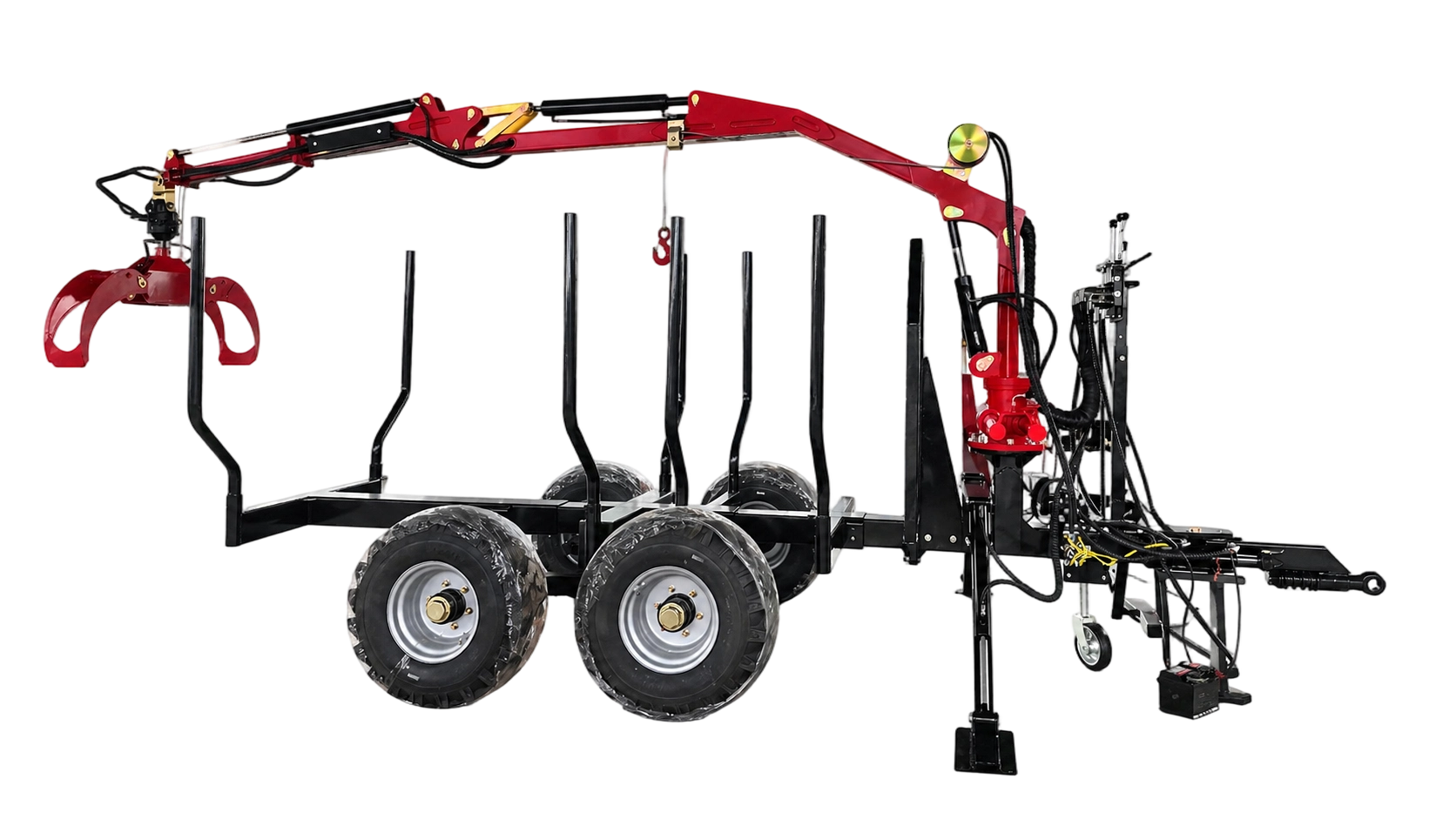

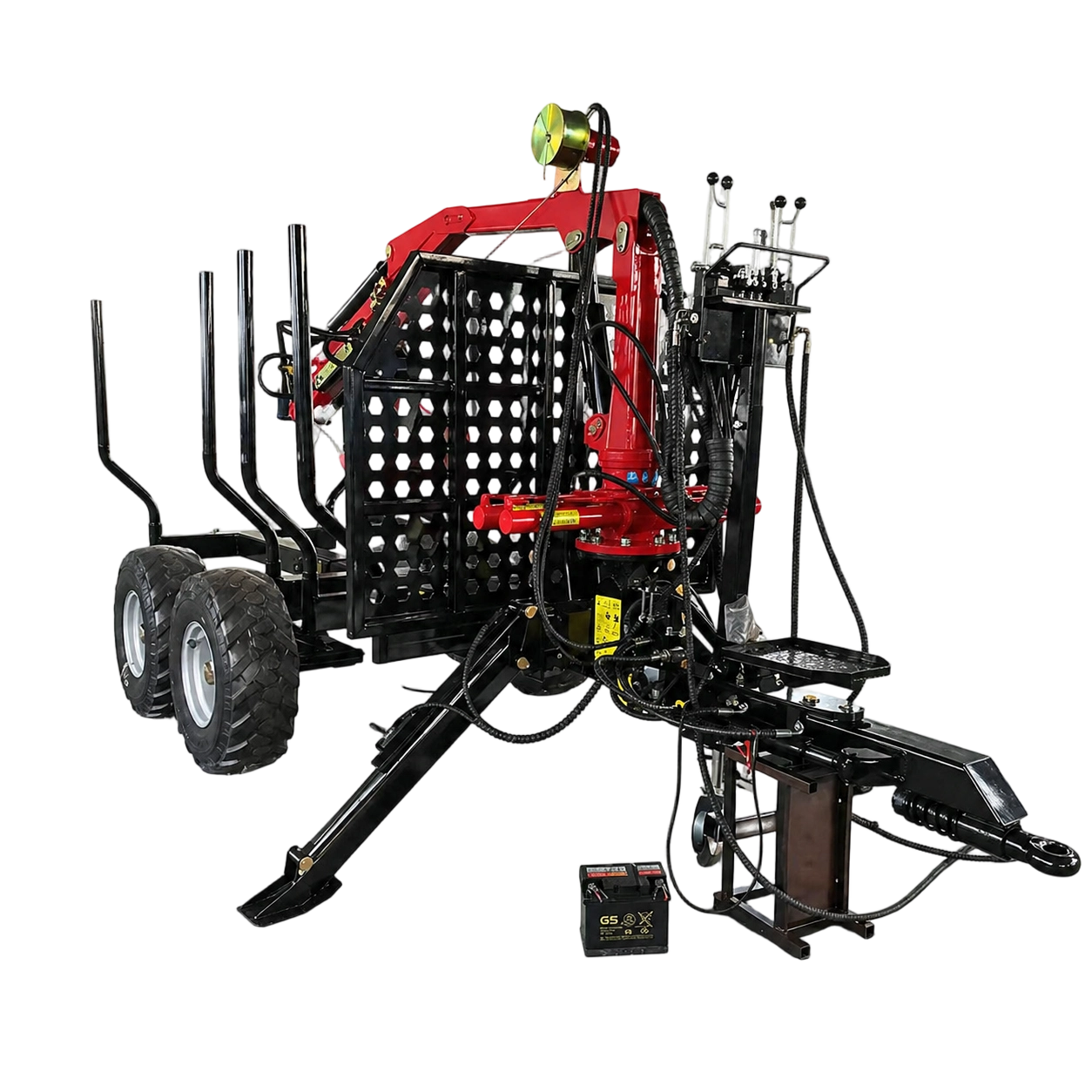

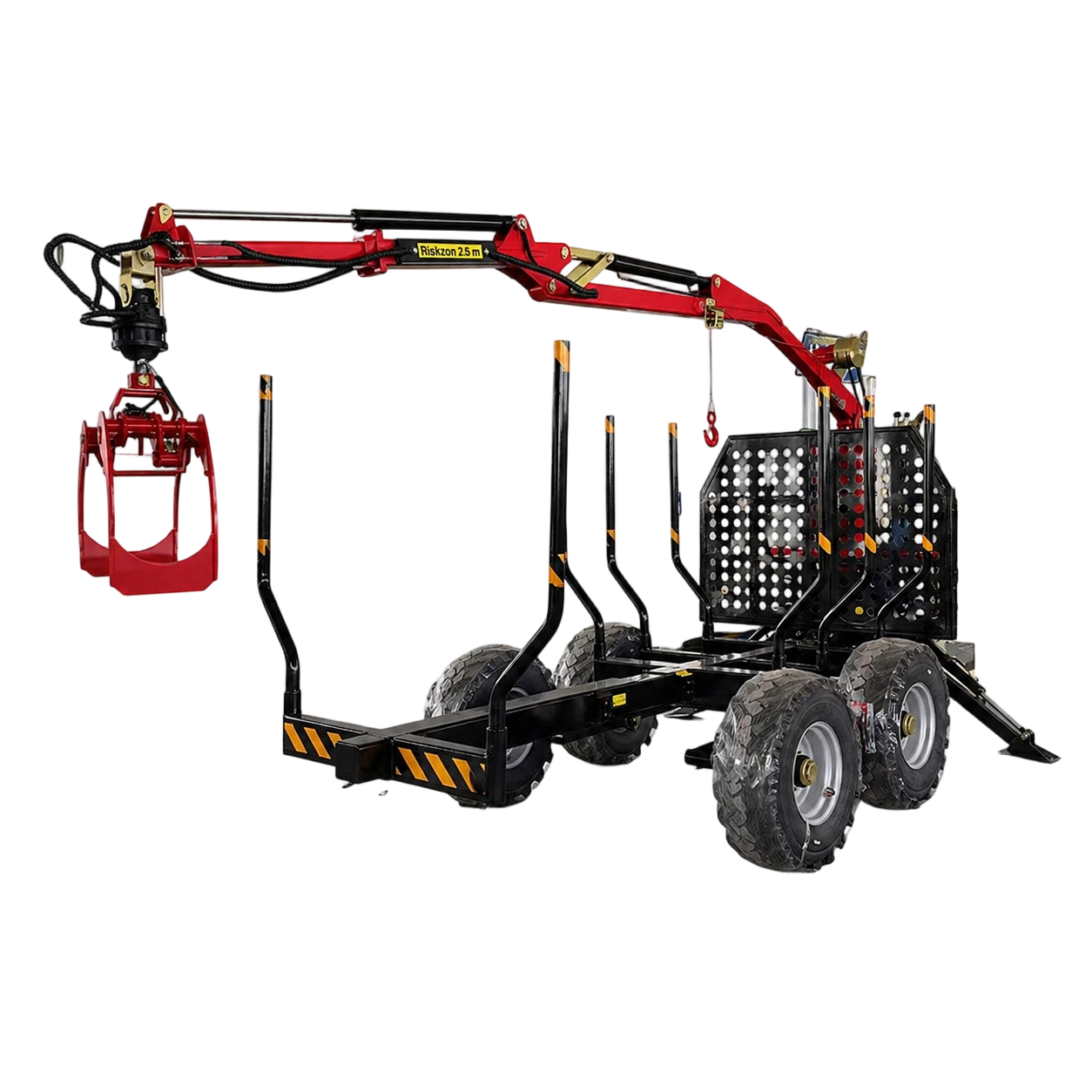

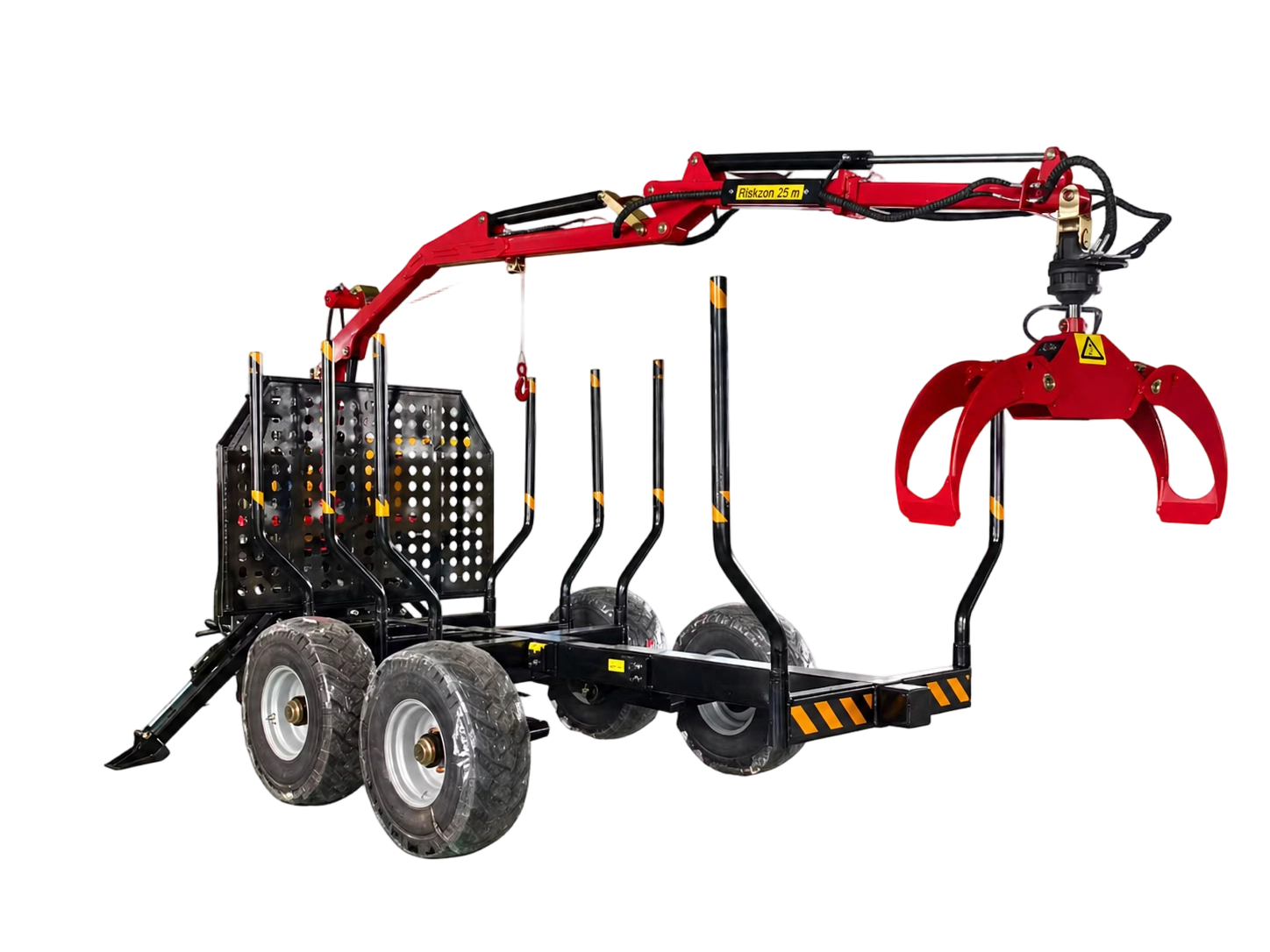

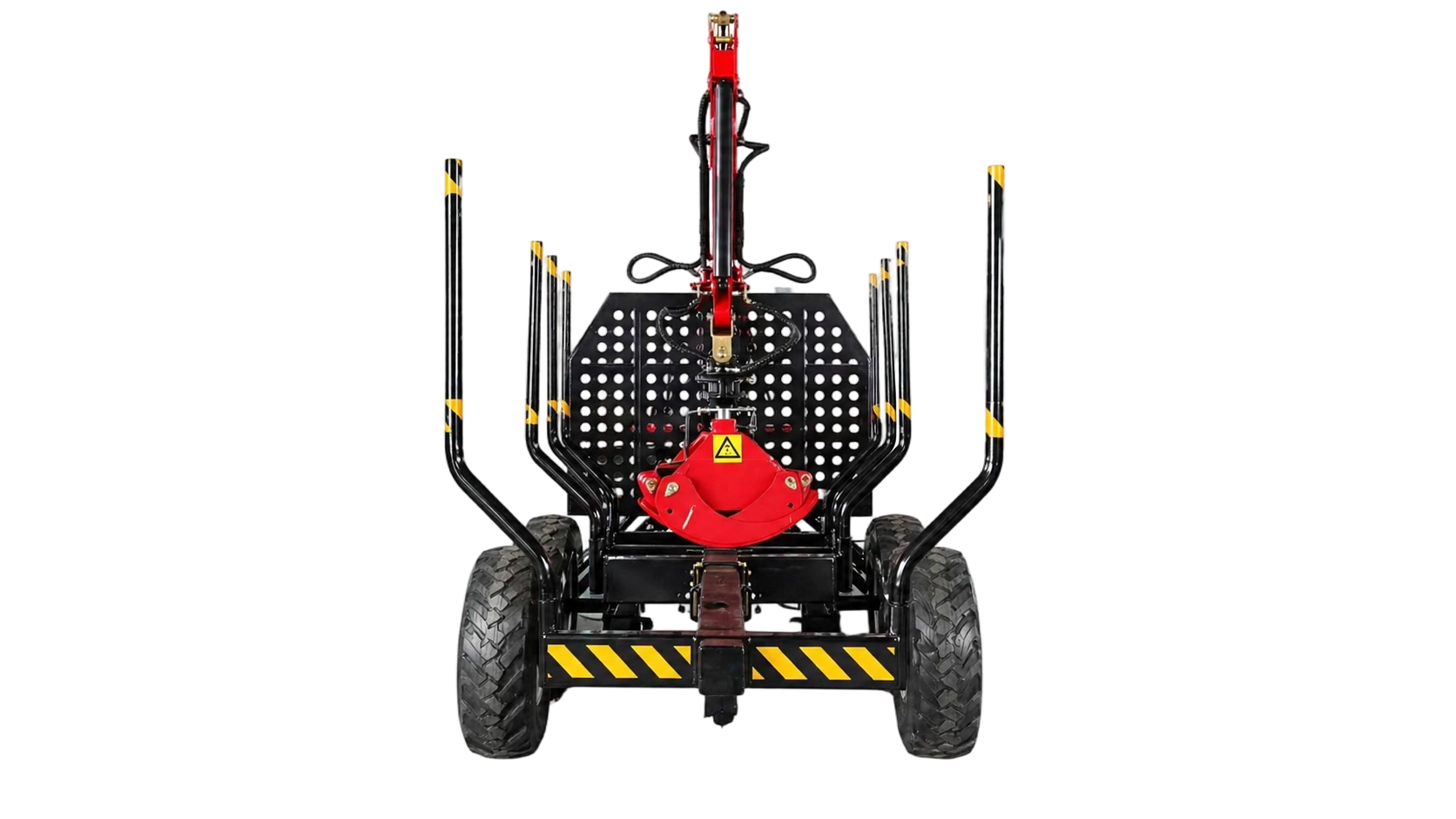

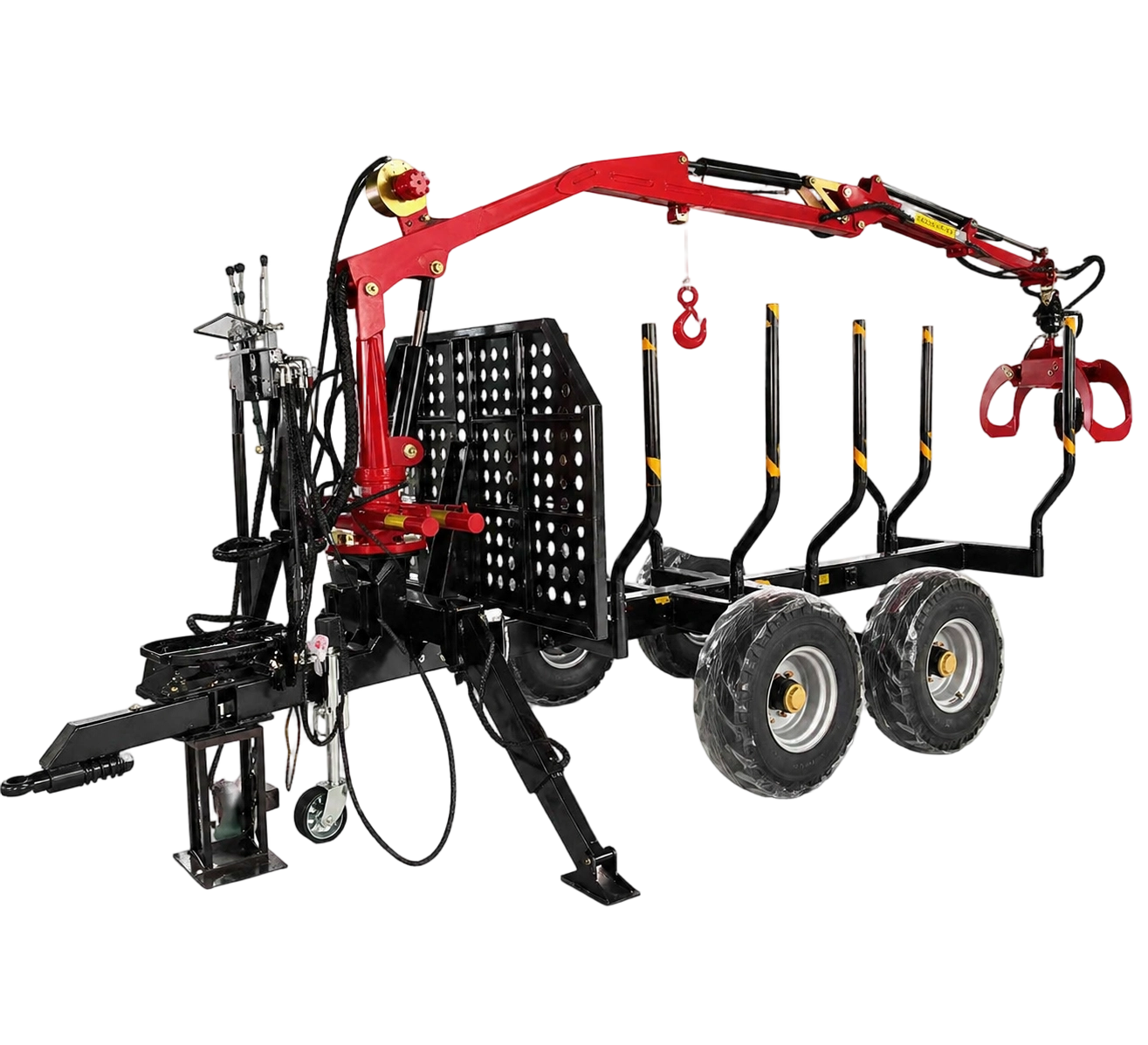

Log Trailer TTQT-47

Forestry trailer allows loading and unloading of timber, designed to be connected to ATV/UTV (min 500cc) vehicle or towed by a smaller tractor, particularly suited for use by self-employed farmers. Must not provide any customizations between towing vehicle and the forestry trailer. 2ton ATV forestry trailer with 3.4m (or 3.6m) crane package includes: 3.4m (or 3.6m) crane + trailer 9HP Lifan engine power unit2-lever valve block4WD driving kit Grapple Rotator 1 ton Winch with remote control

Category: ATV/Tractor log trailer with crane

WhatsApp:

+8615065750119 +8615606457821

Get A Quote Related Products

Product Details

Product	Tractor Log trailer
Model	TTQT-47
Maximum load	8Ton
Crane reach(with telescope boom)	4.7m
Total length(extendable trailer)	5,4 m/6.5m
Total width	2,2m
Articulated steering with one cylinder	Yes
Wheels	400 x 60-15.5 16 ply
Support foot	Standard
Articulated drawbar	Yes
Number of struts	8
Hydraulic support legs	Standard
Turn cylinder sleewing house crane	4
Gripping area	0,18 m2
Pendulum brake between the folding arm and rotator	No
Turning rotator	Standard
System pressure	17 Mpa
Valve	Standard, Monoblock
Winch	Optional（40m）
Brakes	No
Headboard(Height)	1,1 m
Load width bottom	1,10 m
Load width top	1,56 m
Ground clearance	0,578 m
Weight	1900 kg
Recommended power requirement(tractor)	30-60 hp
